Data-Mate
IPLC Programmer
Configure, report and program.
The optional IPLC Data-Mate is a companion hand-held device designed to transfer information between IPLC units and your Windows-based computer. The proprietary software allows you to change factory settings as well as customize individual or all of your IPLC outlets and print reports to show the power savings.
$358.99
Quantity
Shipping
Shipping is calculated at checkout.
Returns
30 day return policy, see Refund Policy.
Model
| Model | IPLC Data-Mate Model: DM4 |

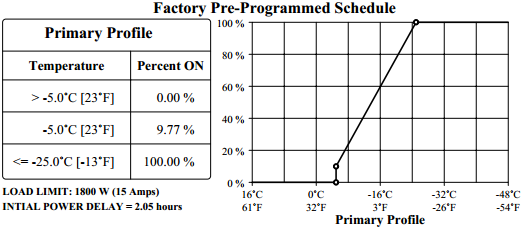

Pre-Programmed Schedule
| Schedule | M210-15 |
| Initial Power Delay | 2.05 Hours |
| Load Limit | Up to 1,800 Watts (15 Amps) |
Specifications
| Model | IPLC Data-Mate Model: DM4 |
Software Requirements
| Operating System | Windows® 98, Windows® XP, Windows® 7, Windows® 8 and Windows® 10. Works with 32 or 64 bit operating systems |
| RAM | 8 MB |
| Available Space | 4 MB |
| Ports | 2x USB Ports |
| Input Devices | Keyboard and Mouse |
| Video Card | Minimum 640 x 480 VGA compatible |
| Printer | Graphics capable printer with Windows driver |
Specifications
| Exterior | Polyethylene Plastic |
| Indicator Lights | 2x Green and 2x Red LEDs |
| CPU Access Port | IR (Infrared) |
Physical Information
| Width | 1.75 inches |
| Height | 1 inch |
| Depth | 5 inches |
| Weight | 0.25 lbs |
Packaging Details
| Box Width | 12 inches |
| Box Height | 3 inch |
| Box Depth | 9 inches |
| Box Weight | 1 lb |
What's in the Box
| Product | IPLC Data-Mate Model: DM4 |
| Connection Cable | Personal Computer Serial Cable |
| Power Source | Alkaline 9V Battery |
| USB Flash Drive | Windows Software, PDF Technical Documents, Manuals and Videos |
Warranty
| Term | 3 Years |
| Coverage | Materials and Workmanship |
| Software Updates | Free Product Lifetime |
